Block Axess Vehicle Mitigation System

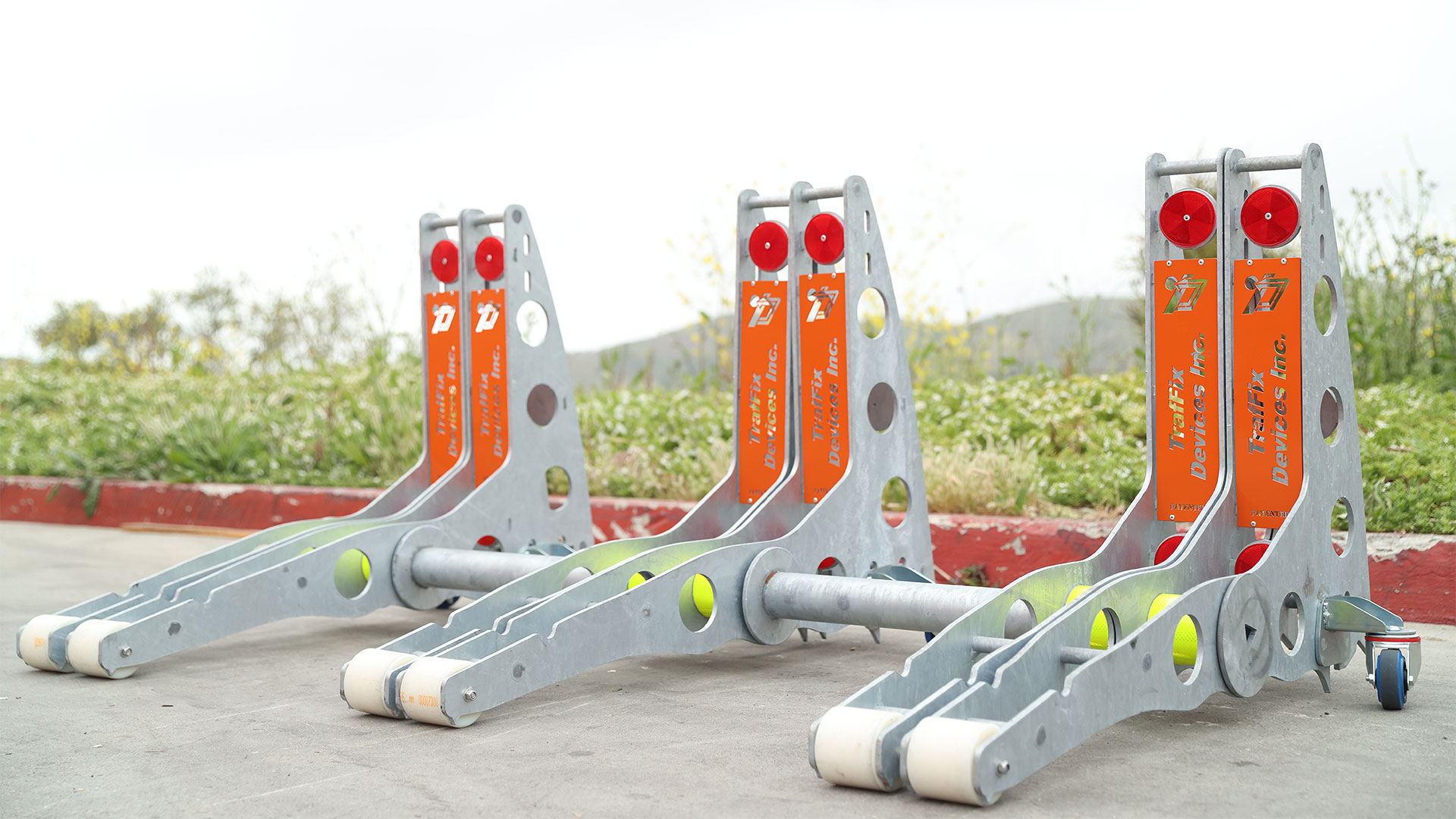

Block Axess Hostile Vehicle Mitigation System set up in a parking lot awaiting final deployment during an event. The Block Axess is a safe and secure way to protect your public event from hostile vehicles.
Block Axess — Vehicle Mitigation System
A safe and secure way to protect your public event from hostile vehicles
Icon showing moving stopwatch, meaning Quick and Simple

Quick + Simple

Remarkably fast assembly/disassembly process requires only one person. Block Axess can be deployed in less than 10 minutes without the need for extensive manpower or time-consuming processes.

Icon showing pencil and ruler, meaning Versatile and Customizable

Versatile + Customizable

Modular design allows for various sizes by simply adding components. The customizable laser-etched plates enable you to incorporate your city, event, or company's name to fit your needs.

Icon showing a lock, meaning Highly Secure

Highly Secure

Constructed from thick, galvanized steel, Block Axess provides robust security. Its tamper-proof assembly and disassembly requires specialized tools, ensuring that the security can't be compromised.

Compact Kit With Minimal Parts

Total Weight: 1,060 lbs (480.8 kg)

Unit fits securely into a compact storage kit, making it incredibly easy and convenient to store, transport, and deploy the Block Axess.

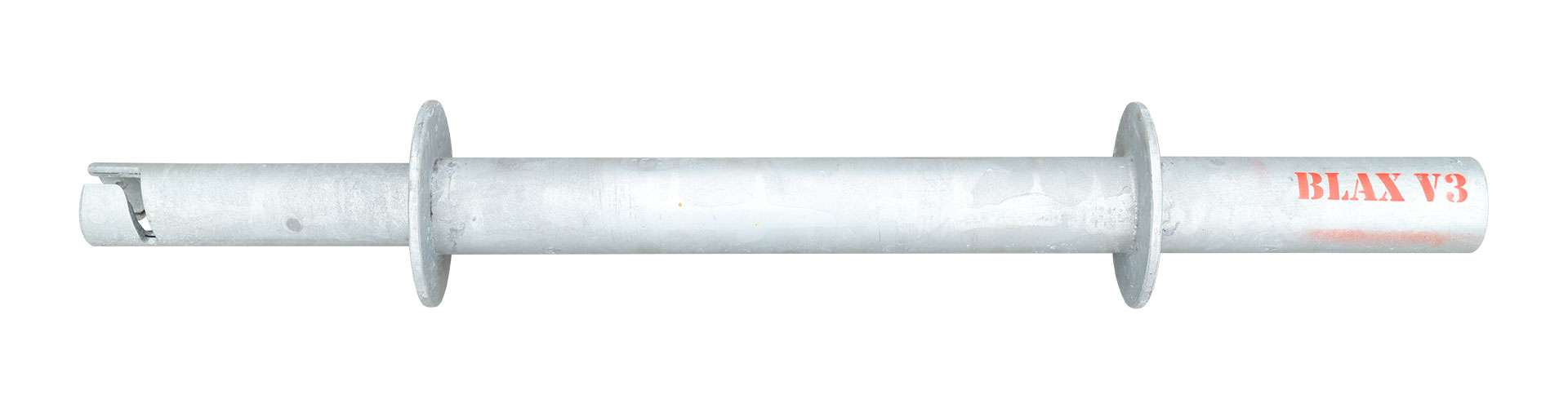

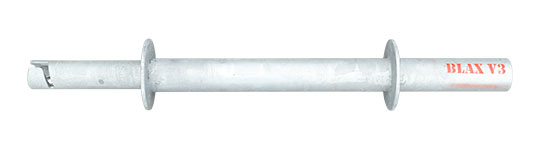

Each Block Axess has 6 heavy and long connecting tubes.
6 Heavy and long connecting tubes

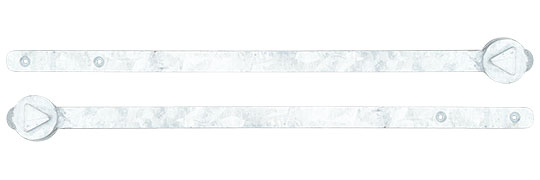

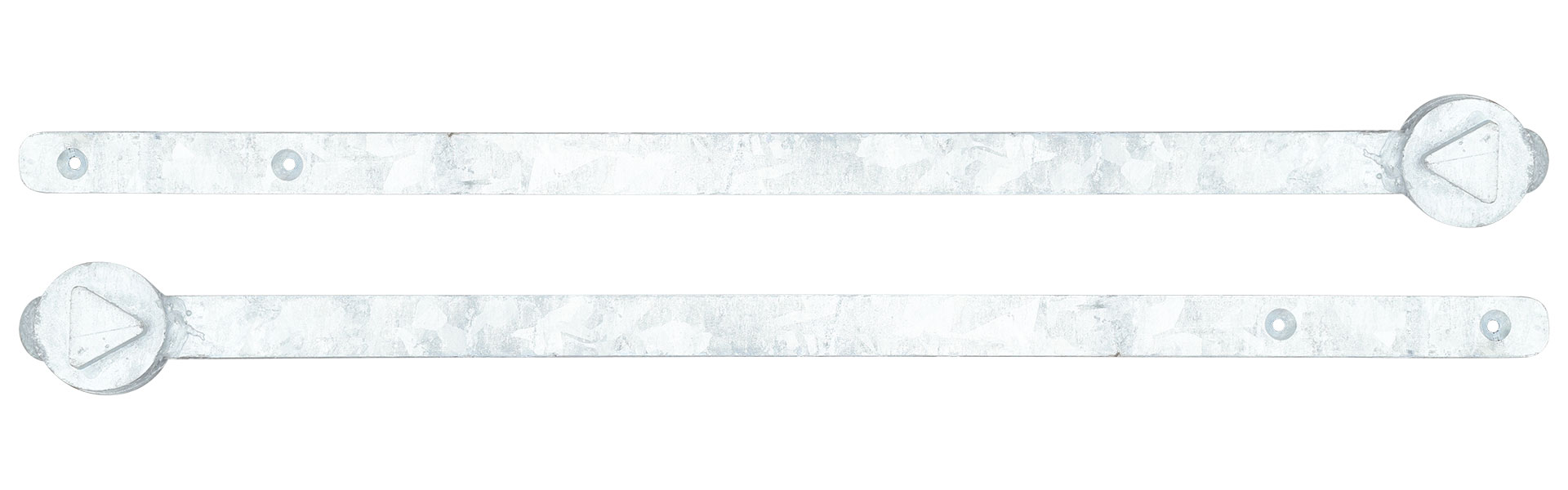

Each Block Axess has 2 specialized spanners for assembly and disassembly.
2 Specialized Spanners

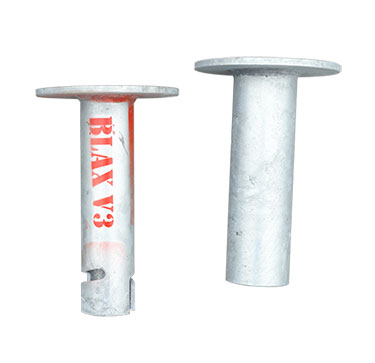

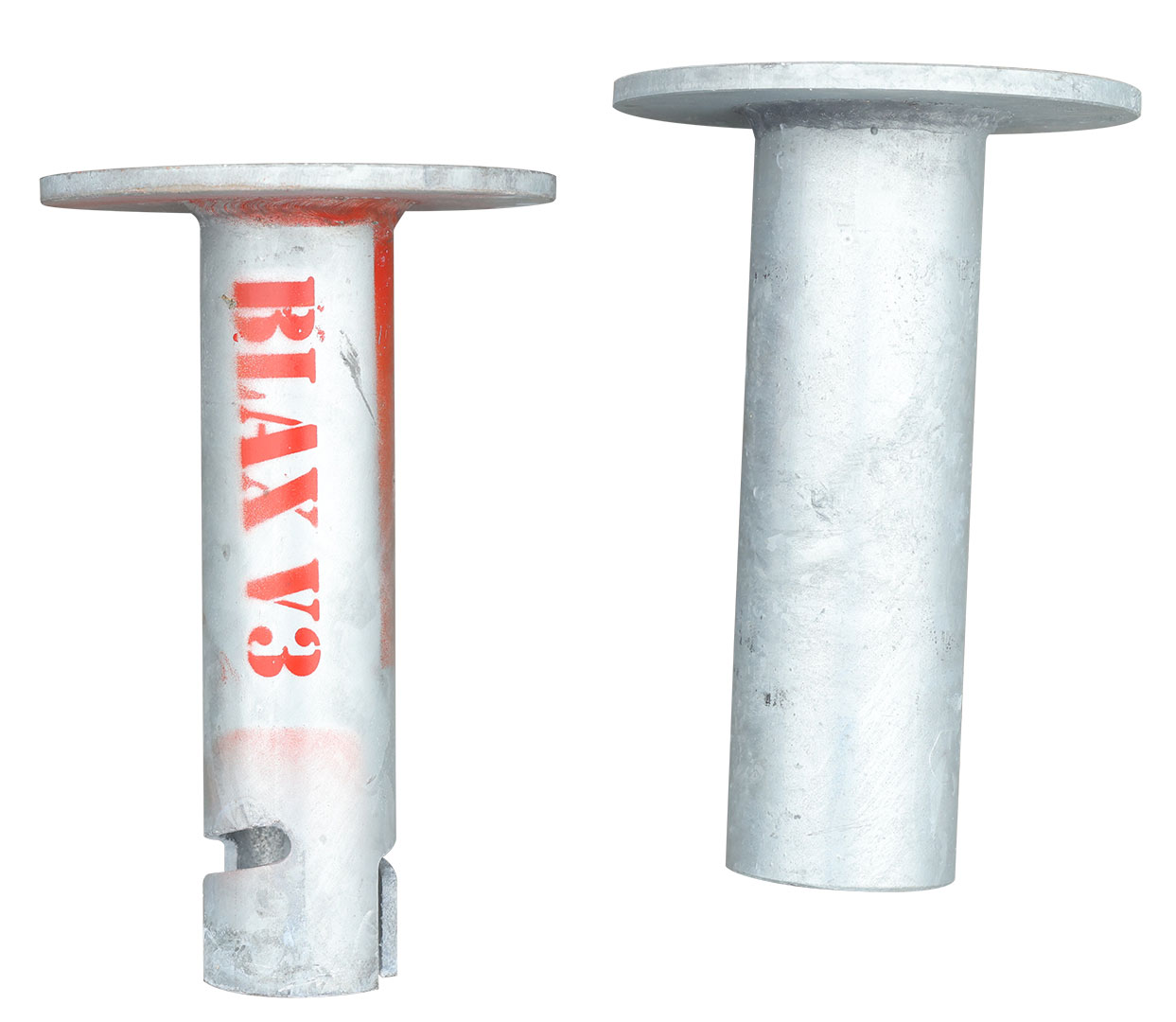

Each Block Axess has 2 end pieces.
2 Ends

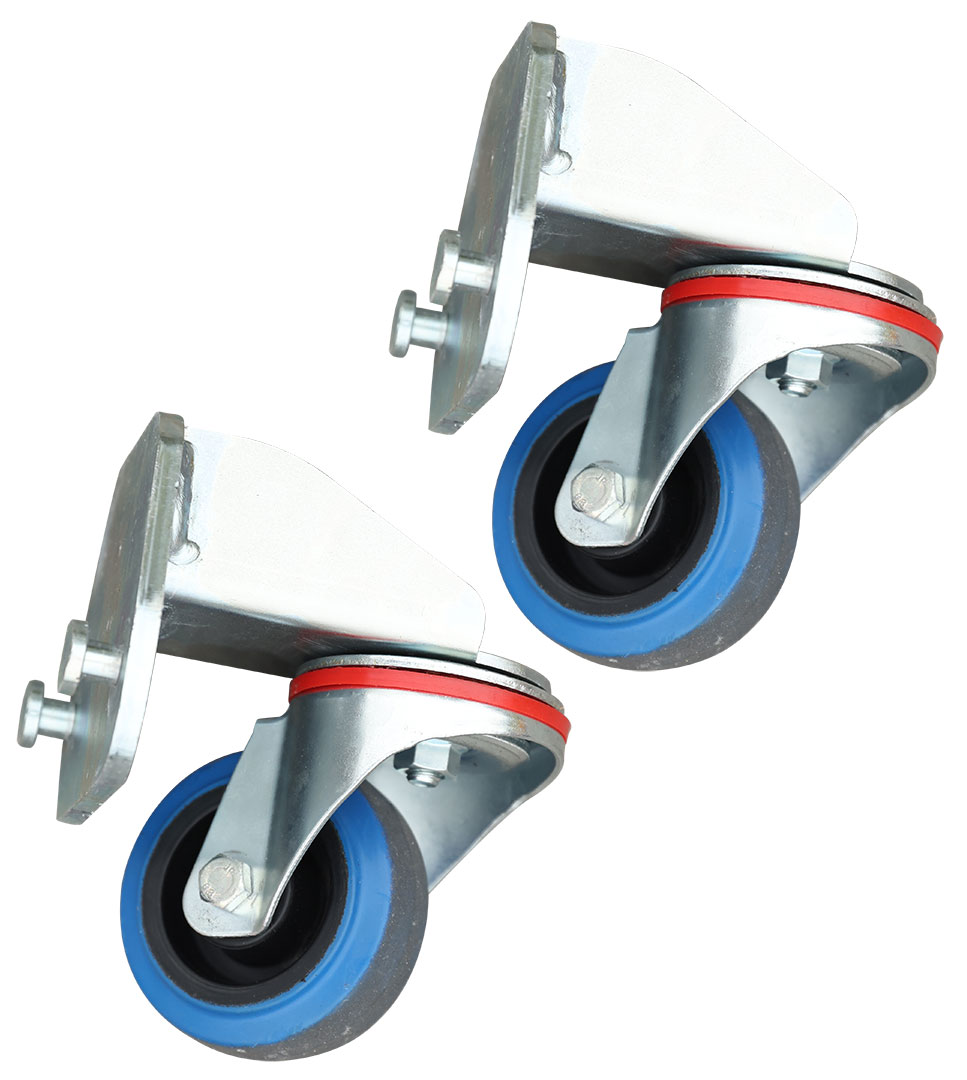

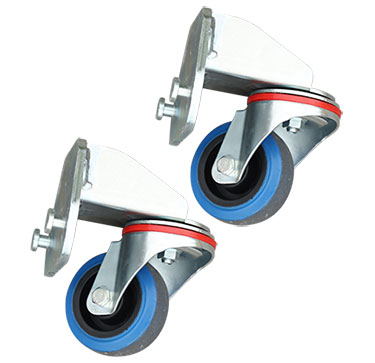

Each Block Axess has 14 wheels.
14 Wheels

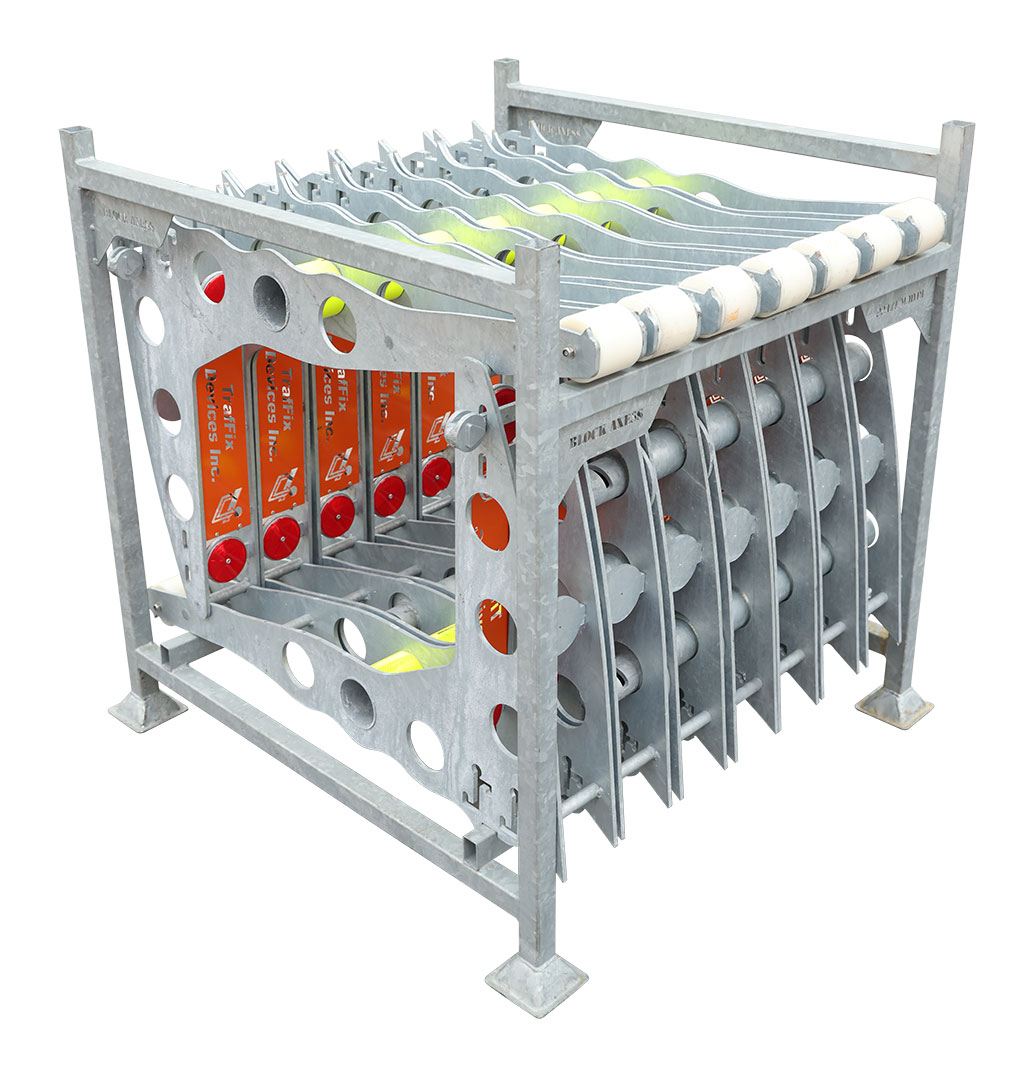

The Block Axess in its compact storage frame
1 Compact Unit

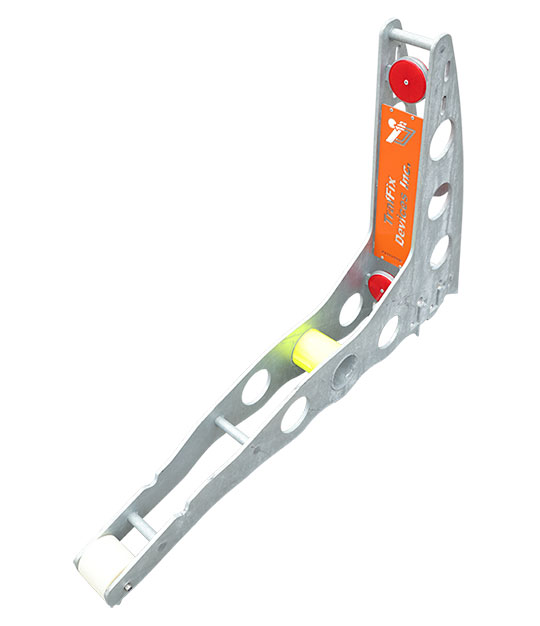

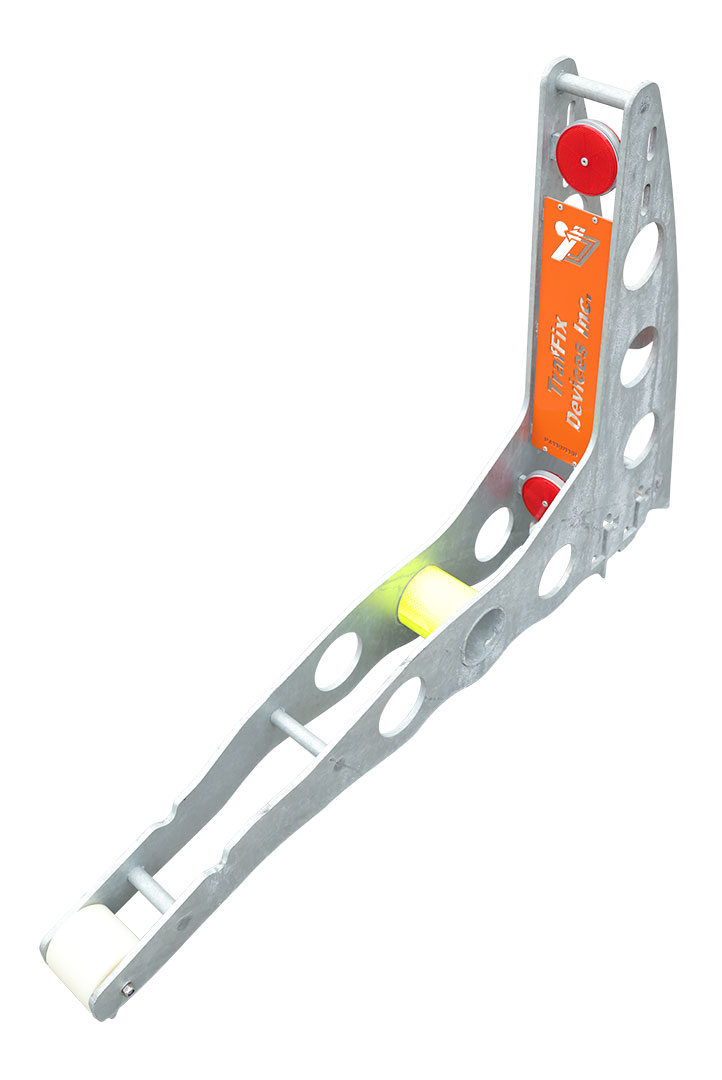

Each Block Axess has 14 heavy-duty steel modules.
14 Modules

Certifications

The Block Axess is certified against ASTM F2656 - U30/P3 to resist vehicles up to 7.5 tons traveling at 30 mph.

ASTM International Certification

Also certified to IWA14-1 PAS68

  • IWA14-1 Impact Tested
  • PAS68 BSI Impact Tested

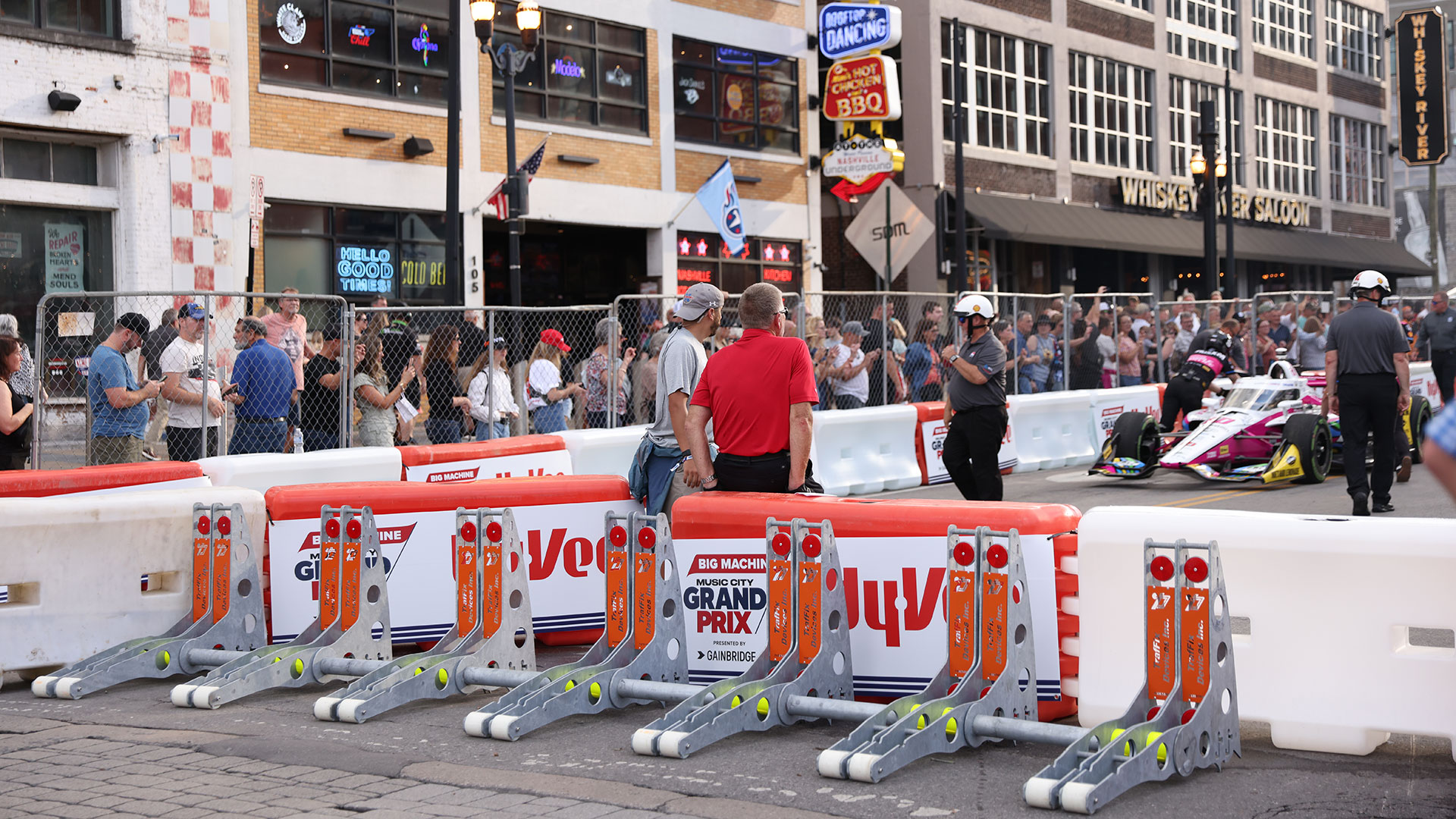

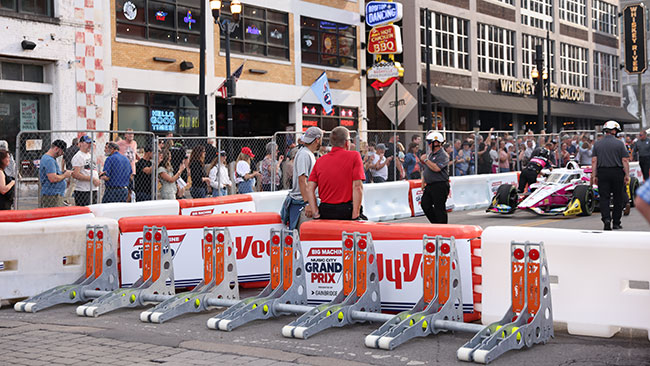

The Block Axess in use as the 2024 Big Machine Music City Grand Prix in Nashville, TN.
The Block Axess in use at the 2024 Big Machine Music City Grand Prix in Nashville, TN.

Block Axess Component Details

Part Number Description Weight (lbs.)
79005 Block Axess V3 Replacement Module 61
79006 Replacement Rack 98
79010 Block Axess V3 Tube 28
79011 Block Axess V3 End Caps (1 Male / 1 Female) 15
79012 Block Axess Set of 2 Tightening Spanners 6

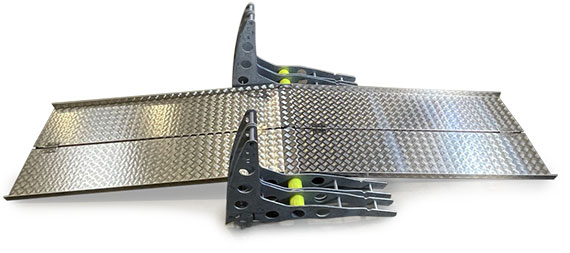

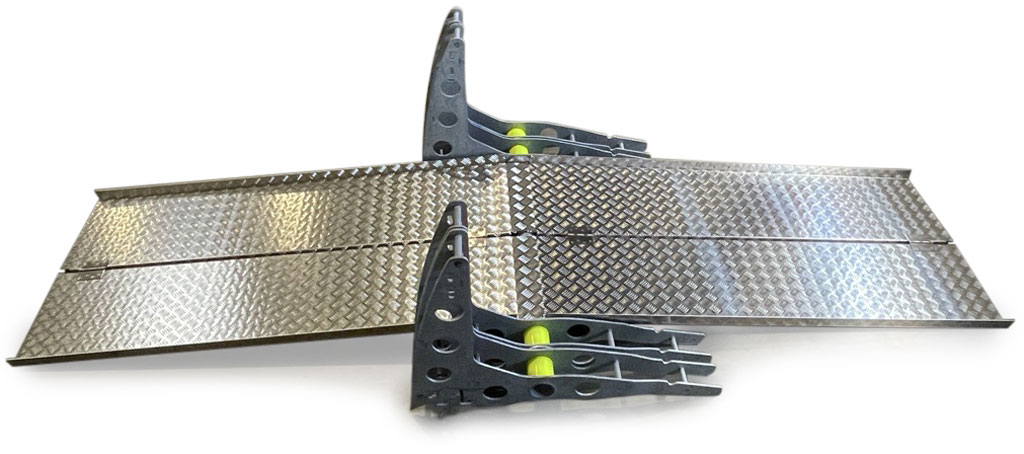

79013 Trolly Ramp Kit & Extended V3 Tube 93
79014 Block Axess Blue Wheels - Set of 7 12

Documents

General Information

Product Bulletin
