Vigi Blax Vehicle Security Barrier

Above-Ground & In-Ground Vehicle Mitigation System

A safe and secure way to protect your public event from hostile vehicles. Prevents vehicles from entering pedestrian areas at parades, farmers markets, festivals, sporting events, and other outdoor events.

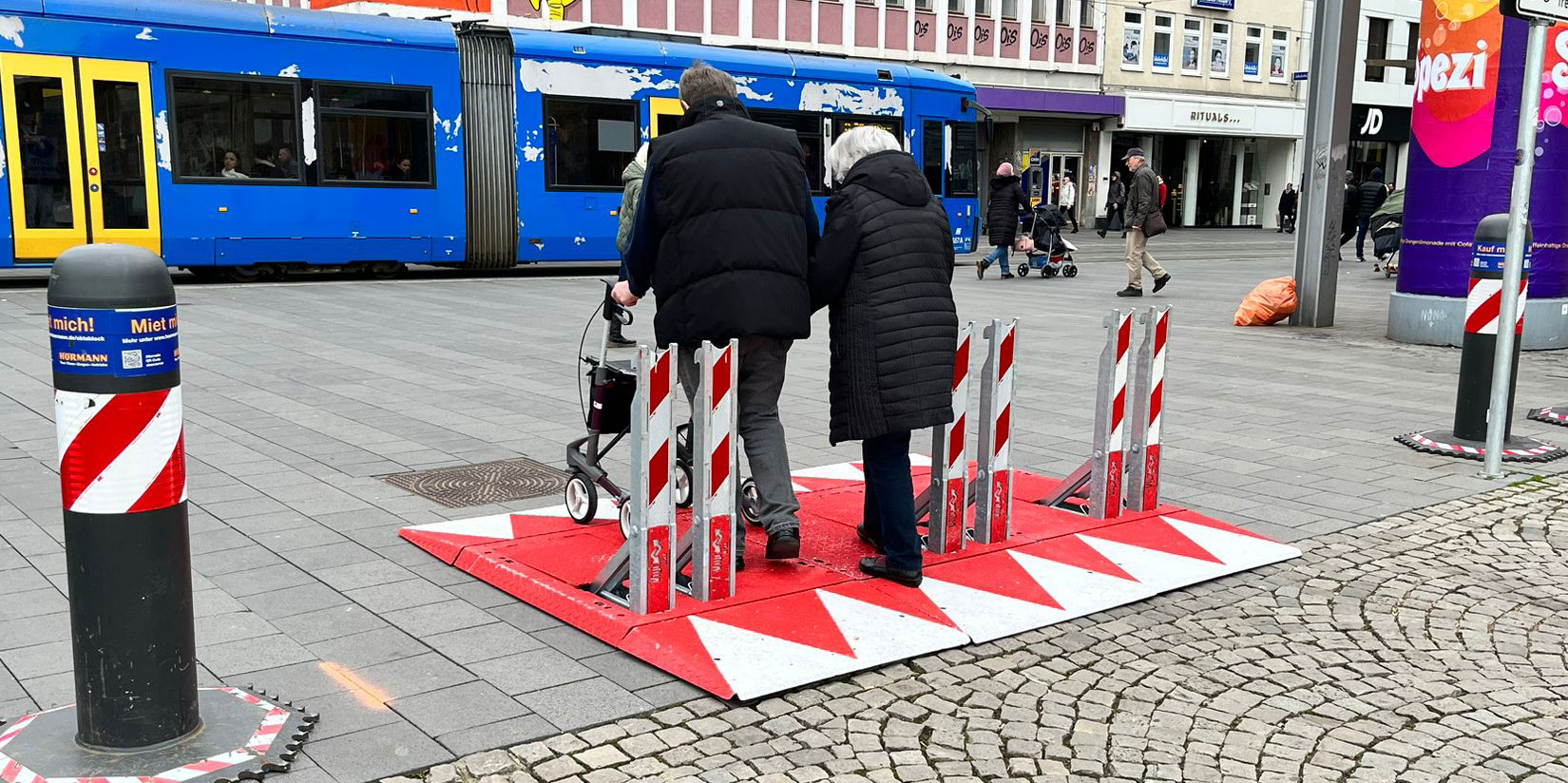

The Vigi Blax security barrier in use at a European urban metro station protecting travelers along side permanent security bollards.
The Vigi Blax security barrier in use at a European urban metro station protecting travelers along side permanent security bollards.

Easy to Install & Access

  • Easy installation with moderate lifting means
  • Low slope ramp with trolley passage & firefighter lock
  • Adjustable as desired

Simple, Secure Design

  • Thick galvanized steel & anti-slip paint
  • Visible day and night
  • Zero maintenance costs

Certifications

The Vigi Blax vehicle security barrier is certified against ASTM F2656-F2656M P3, IWA 14-1:2013 P3, and PAS68:2013 P3 to resist vehicles up to 16,259 lbs (7,375 kg) traveling at 30.2 mph (48.8 kmh) with an impact angle up to 89.5°.

  • IWA14-1 Impact Tested
  • PAS68 BSI Impact Tested
  • ASTM International Certification

Above-Ground System

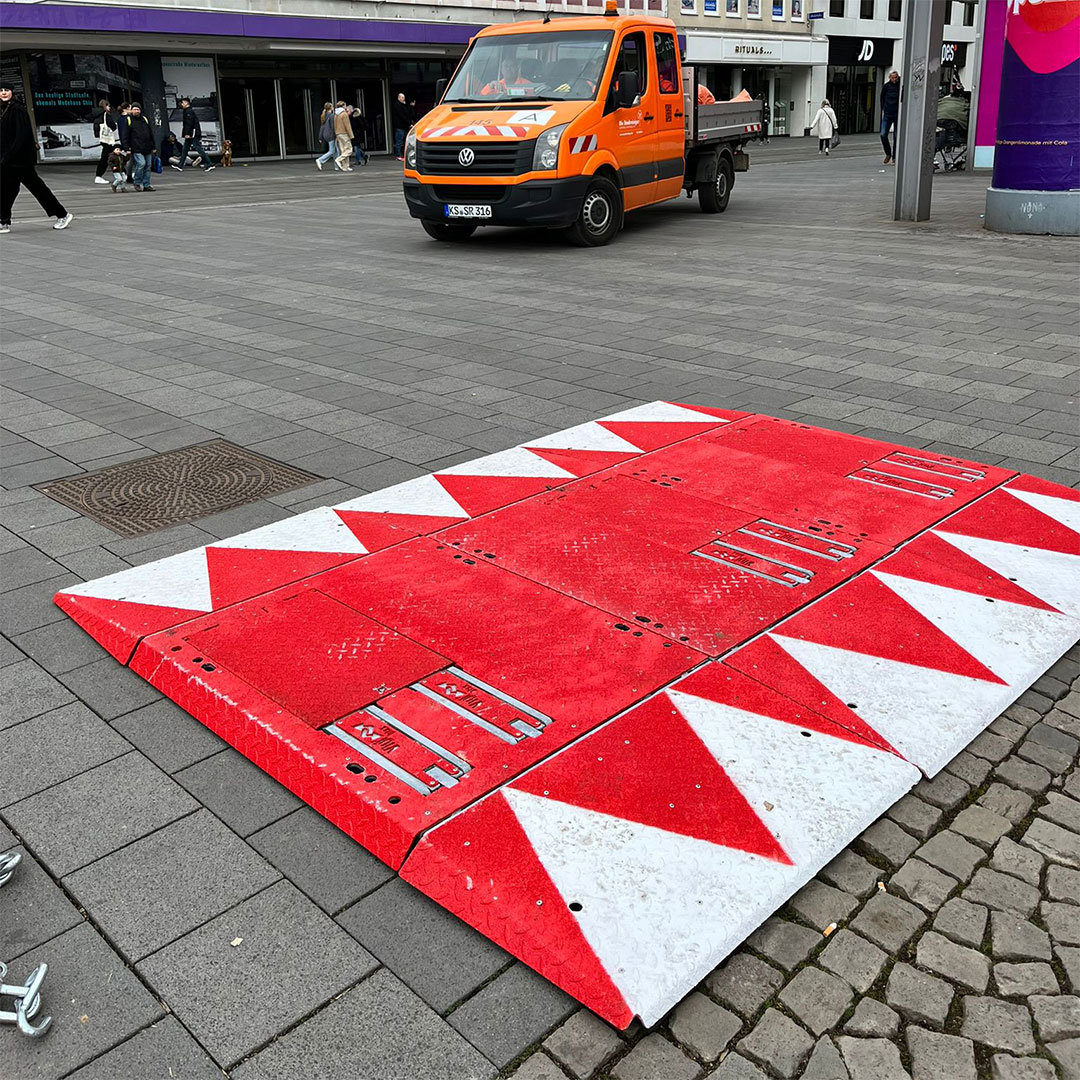

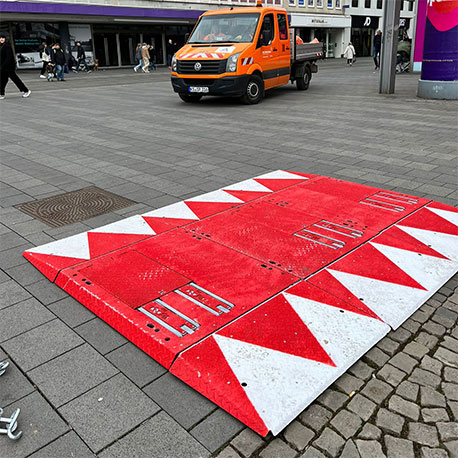

The Above-Ground Vigi Blax in use at a European metro station protecting passengers along side permanent security bollards.
The Above-Ground Vigi Blax in use at a European metro station protecting passengers along side permanent security bollards.

Temporary installation that lays on the ground without anchoring or degradation.

  • Can be raised or lowered for pedestrian ease of use for sidewalk
  • Can be drilled to the road surface to prevent movement from vibrations for stabilization
  • Low acoustic impact

In-Ground System

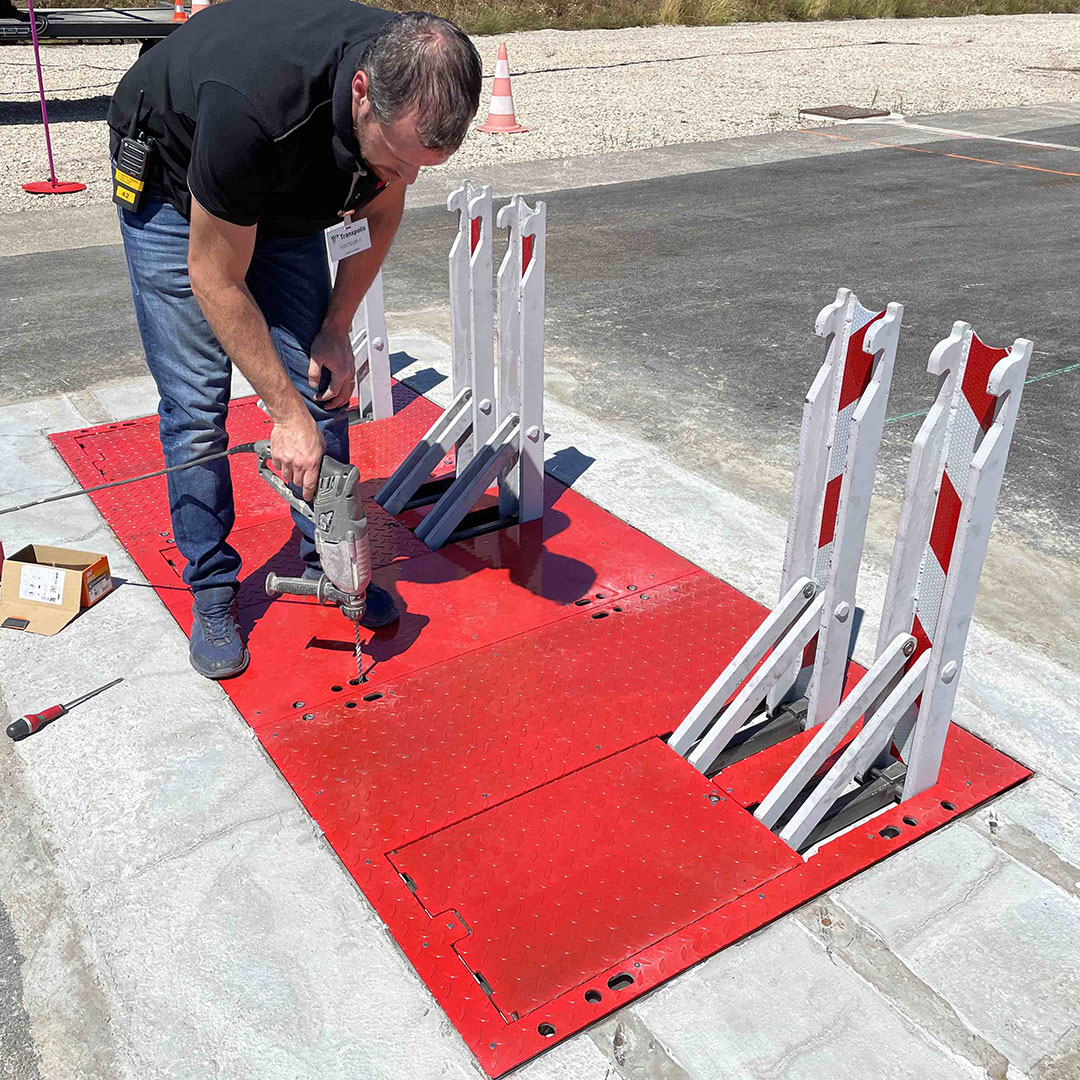

The Vigi Blax vehicle security barrier being installed in-ground at a roadway entry point to secure the perimeter of a facility.
The Vigi Blax vehicle security barrier being installed in-ground at a roadway entry point to secure the perimeter of a facility.

Semi-permanent installation for prolonged use; shallow mount with 8" penetration.

  • Sits flush with the roadway
  • Cost effective compared to powered bollards
  • No electrical or water requirements
  • Easily adaptable to existing ground conditions
  • Won't disrupt in-ground utilities
Above-Ground Module Assembly
Height (Deployed) 3' / 0.924 m 3 ft. / 0.924 m
Height (Stowed) 3' / 7.62 cm 3' / 7.62 cm
Length 3' 2" / 0.97 m 9' 4" / 2.85 m
Width 7' 3" / 2.21 m 7' 3" / 2.21 m
Weight 551 lbs. / 250 kg 1,650 lbs. / 750 kg
In-Ground Module Assembly
Height (Deployed) 2' 9" / 0.85 m 2' 9" / 0.85 m
Height (Stowed) N/A N/A
Length 2' 11" / 0.91 m 8' 11" / 2.73 m
Width 3' 11" / 1.2 m 3' 11" / 1.2 m
Weight 404 lbs. / 183 kg 1,212 lbs. / 550 kg
