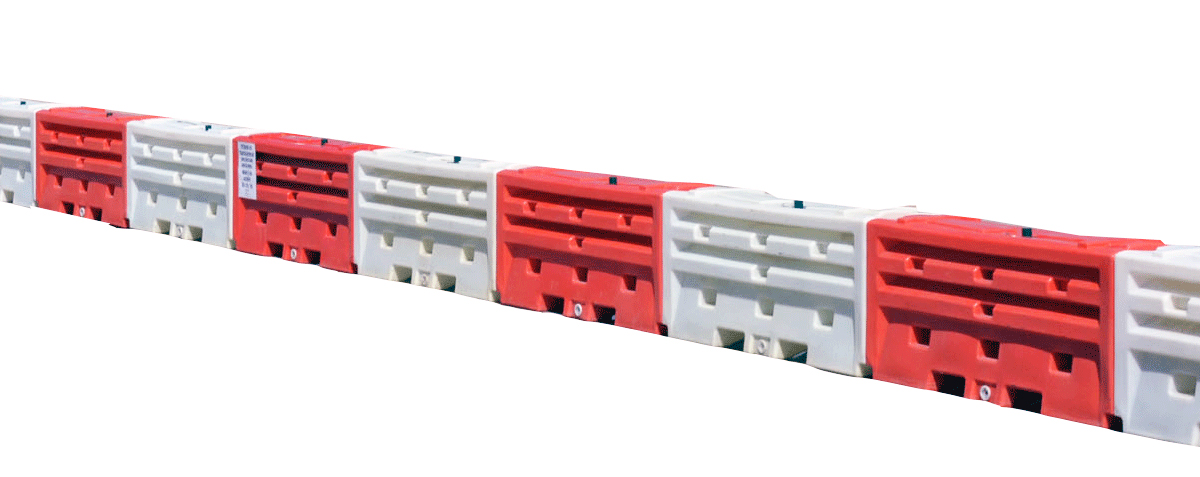

The Lo-Ro Water-Cable Barrier is intended for applications where low deflection of barrier walls is desired.

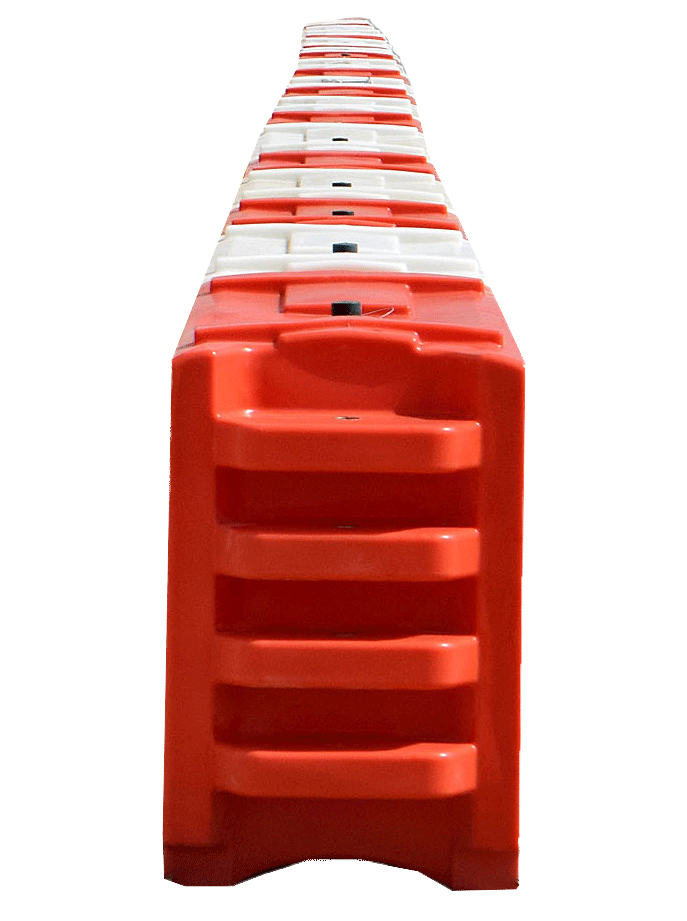

The durable design of the Lo-Ro Water-Cable Barrier's interlocking knuckles minimize rotation between modules to ensure maximum stability, while also having the lowest deflection of any MASH TL-2 Water-Filled Barrier at 11' 9⅗" (3.6m). Each Lo-Ro module has three galvanized steel cables that minimize vehicle penetration into the work zone, has a low profile height of only 36" to provide increased visibility for motorists in urban areas, and molded-in stacking lugs for easy transport and storage.

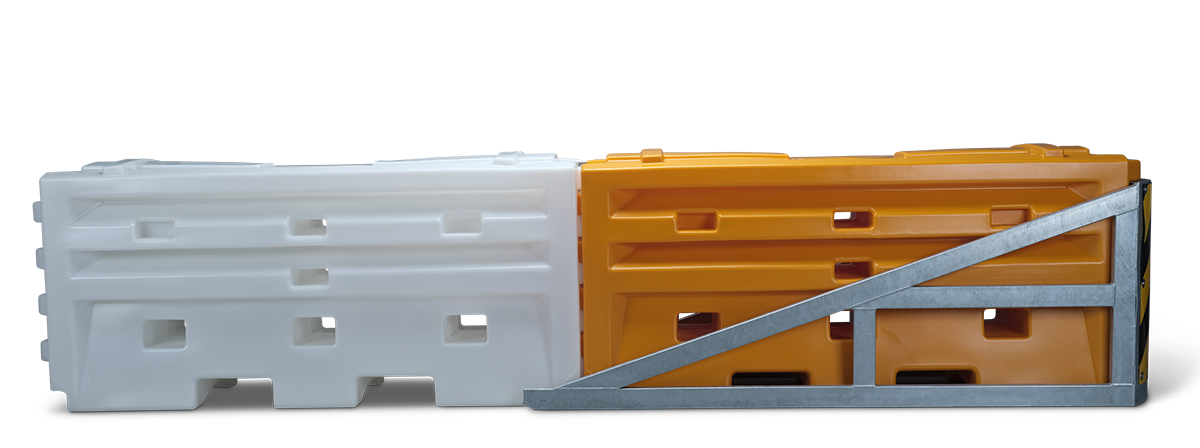

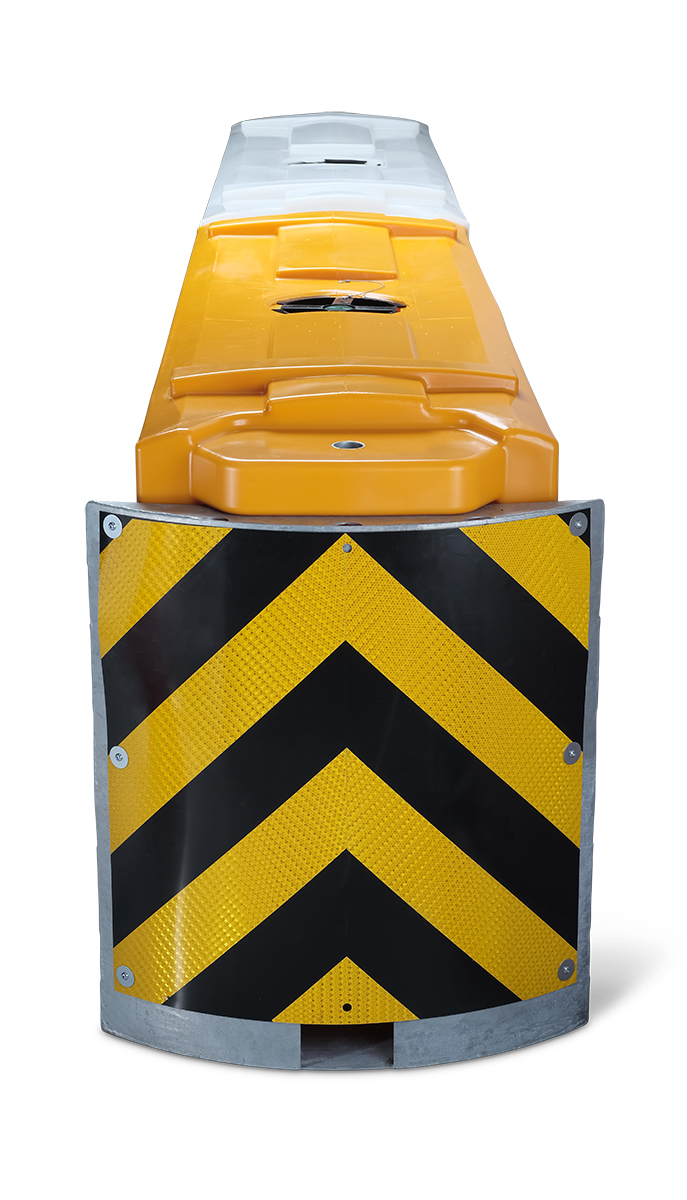

The SLED Lo-Ro is MASH TL-2 Tested and Passed as an End Treatment for the Lo-Ro Barriers.


Specifications

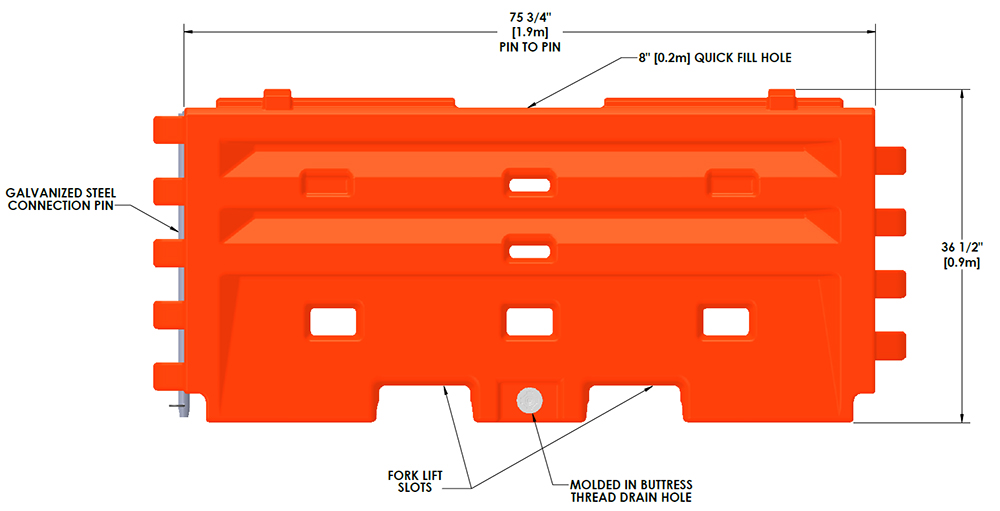

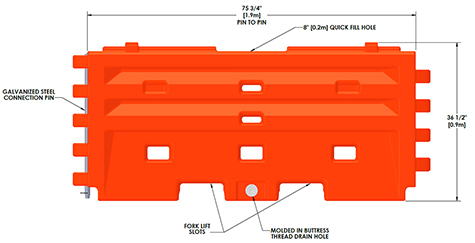

TrafFix Lo-Ro Water-Cable Barrier schematic drawing
TrafFix Lo-Ro Water-Cable Barrier schematic drawing
Weight
Empty 160 lbs. (72.58 kg)
Filled 1,600 lbs (726 kg)
Length
72" (1.83 m)
Width
22½" (0.57 m)
Height
36" (0.57 m)
Material
Polyethylene Plastic & Galvanized Steel
Colors
Orange/Red, White, Yellow

Documents
