Water-Wall Water Filled Barrier
Water-Wall Water Filled Barrier

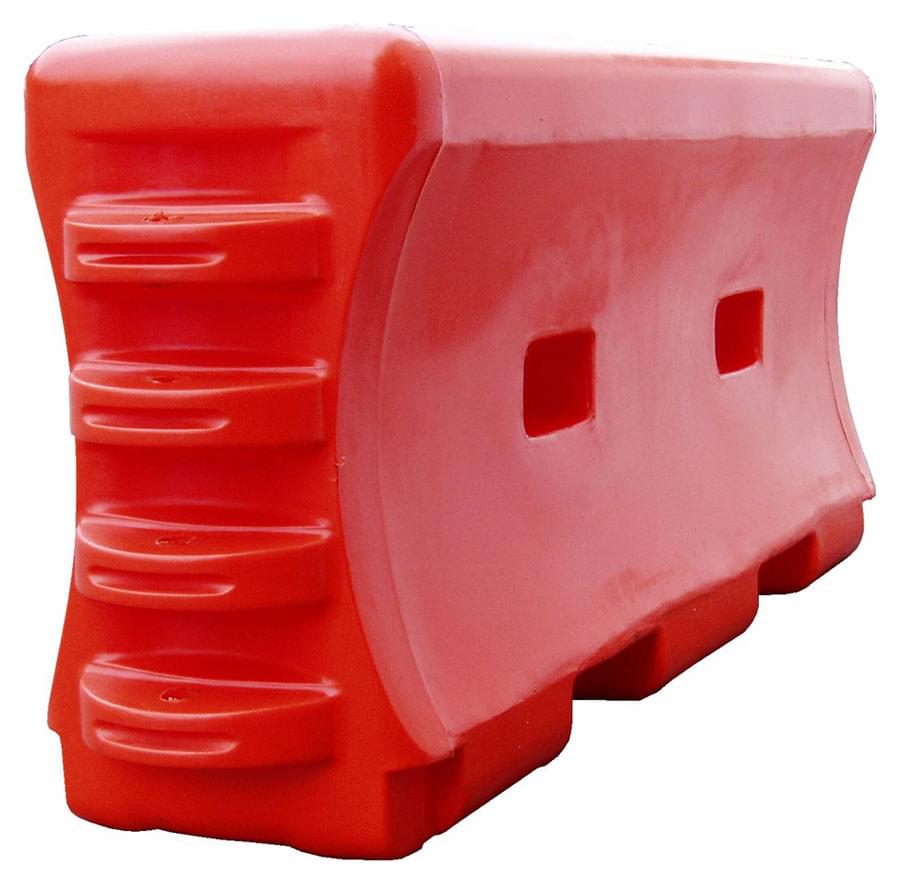

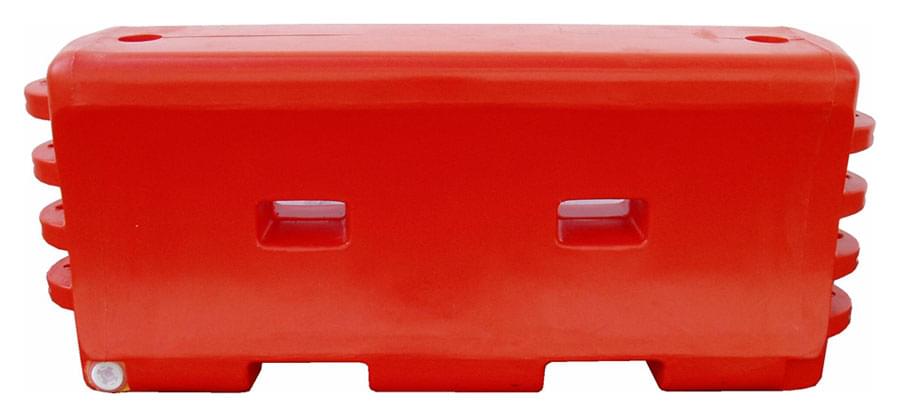

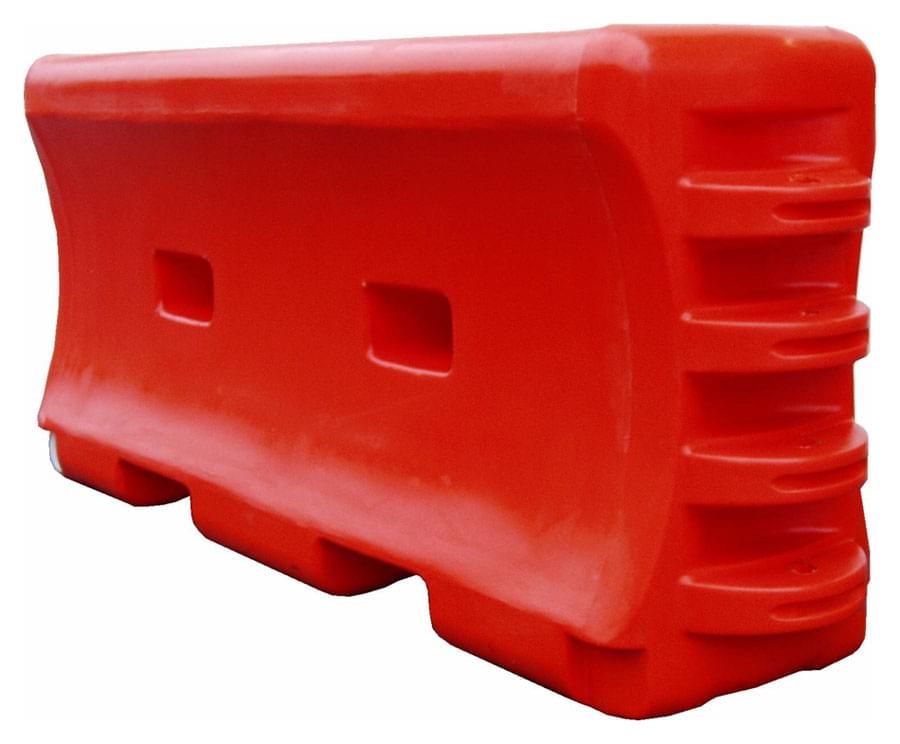

The Water-Wall Barrier is an economic and easy to install crash barrier system.

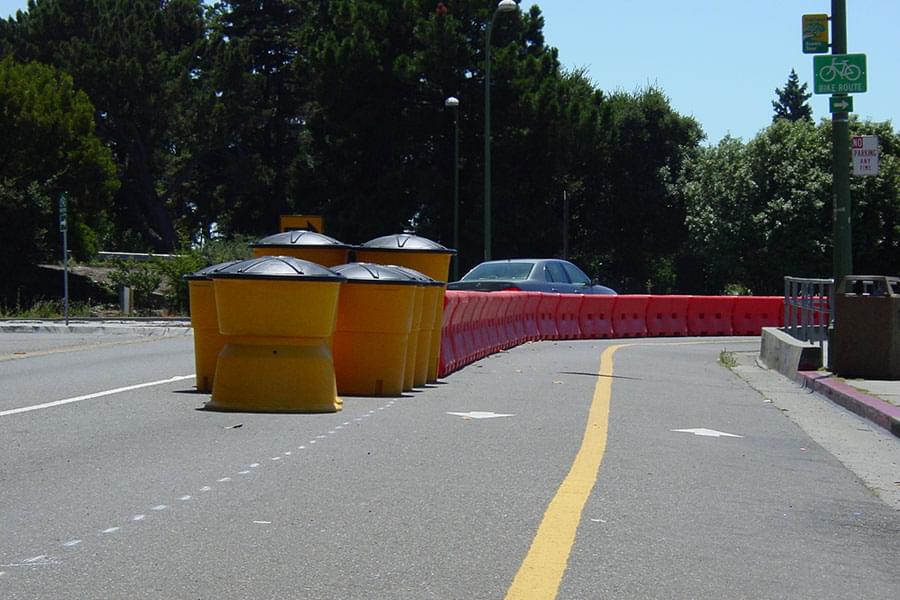

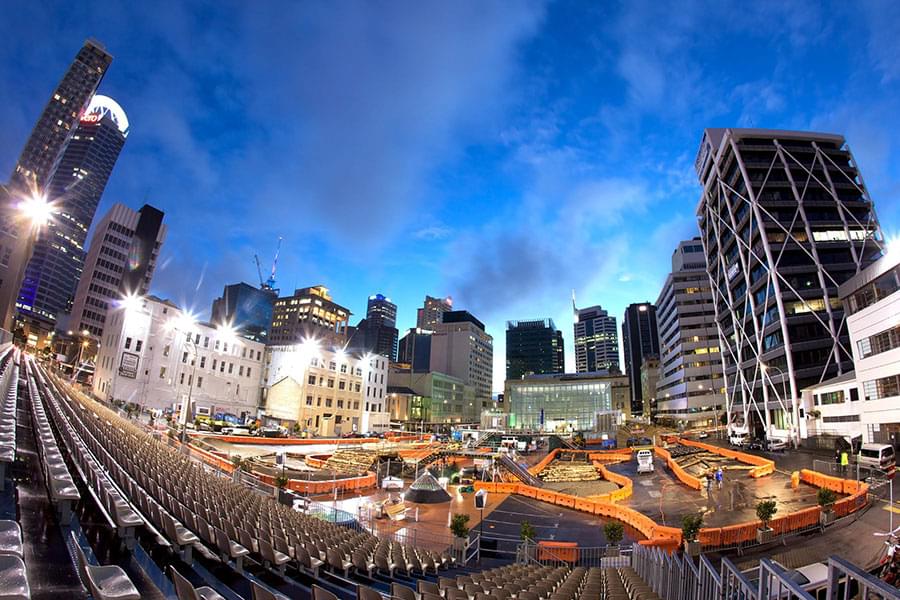

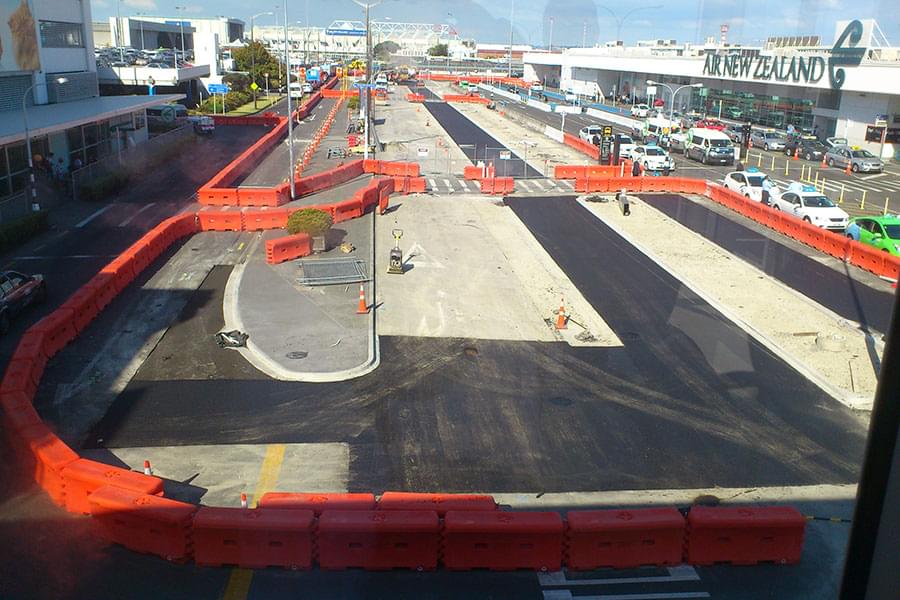

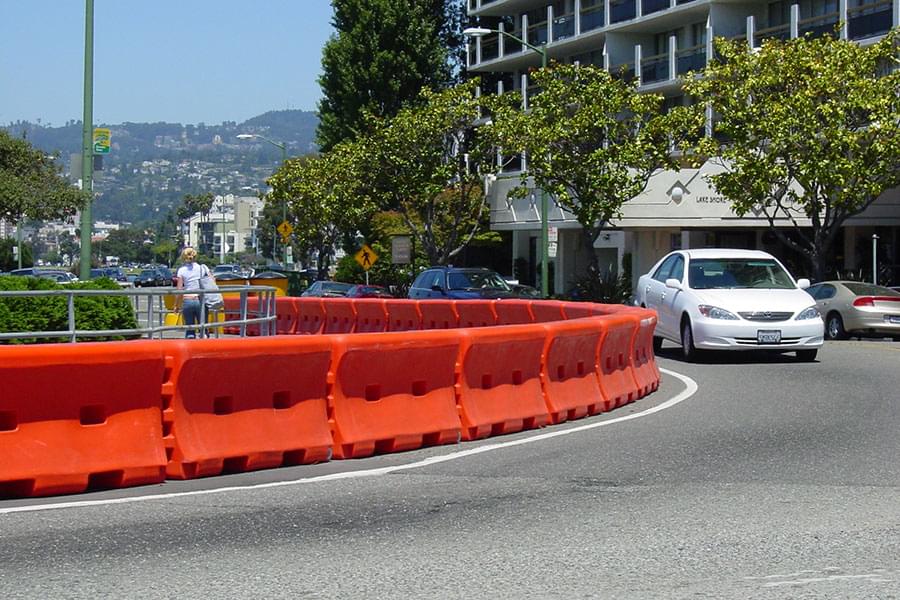

The Water-Wall Barrier is a durable side protective temporary crash barrier system that can be used in many situations; from protecting the public surrounding a construction site, to work-zone safety on roads and highways.

The Water-Wall can quickly and easily connect directly to the SLED end treatemnt which negates the need to shield or flare the end of the barrier. For added privacy and security, the Water-Wall can be equiped with a plastic or chain-link fence (with extended connection pins).

Features

  • Durable polyethylene plastic minimizes cracking and breaking
  • Molded through holes eliminate bowing when filled with water
  • Double wall knuckle design minimizes breakage at hinge points
  • Hinge design allows for a 30° pivot between sections
  • Large 8" fill hole speeds filling process, includes twist-lock plastic cap
  • New tamper resistant, corner offset drain plug with coarse buttress thread - screws in or out in only 2 ½ turns
  • Includes one steel connection pin that allows sections to be locked together
  • Forklift/Pallet Jack slots at bottom allow for easy movement and transport
  • Standard colors are orange/red or white - additional colors available upon request

Specifications

Weight
Empty 80 lbs. (36.29 kg)
Filled 1,110 lbs (503.49 kg)
Length
6' (182.88 m)
Width
18" (45.72 cm)
Height
32" (81.28 cm)
Material
Linear Low Density Polyethylene
Color
Orange/Red or White
Part Number
45032-O & 45032-W

NCHRP 350 Approval

TL-1
Longitudinal Barrier – HSA-10 / B-130
TL-2
Longitudinal Barricade – HSA-10 / WZ-224
TL-3
Barricade – HSA-10 / WZ-224

Videos

Documents

*TrafFix Devices Water-Wall has PASSED ALL optional and suggested requirements in the NCHRP-350 Report for TL-1 evaluation criteria.
